Deck Floor Roll Forming Machine

20000.00 - 100000.00 USD ($)/Set

Get a Price/Quote

Product Details:

Type Deck Floor Roll Forming Machine
Material High-grade Steel
Capacity 8-15 m/min (rolling speed)
Computerized Yes
Automatic Grade Automatic
Control System PLC Control System
Rolling Speed 8-15 Meter/Minute
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Deck Floor Roll Forming Machine Price And Quantity

Minimum Order Quantity 1 Set
Price Range 20000.00 - 100000.00 USD ($)/Set

Deck Floor Roll Forming Machine Product Specifications

Capacity 8-15 m/min (rolling speed)
Control System PLC Control System
Color Blue & Yellow
Weight About 9000 kg
Type Deck Floor Roll Forming Machine
Cutting Thickness 0.8-1.2 mm
Cutting System Hydraulic Cutting
Automatic Grade Automatic
Rolling Speed 8-15 Meter/Minute
Dimension (L*W*H) 9500*1500*1400 mm
Computerized Yes
Voltage 380V / 50Hz / 3 Phase
Material High-grade Steel

Deck Floor Roll Forming Machine Trade Information

Supply Ability 100 Set Per Month
Delivery Time 60 Days
Main Export Market(s) Australia, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Central America, North America

Product Description

Our Deck Floor Roll Forming Machine is offered as per the customers requirement. The machines featuring high technical content, optimized composition, reliable performance and easy operation. It is not only made by quality assured products, but also quality tested by highly skilled quality controllers to render maximum clients satisfaction. Deck Floor Roll Forming Machine is widely used for manufacturing tiles of different designs which are used in various building, homes and many more. The product is available in various technical specifications according to clients need.

Working Process

Decoiler- Feeding-Roll Forming- Cut to length- Outer table

Technical specification .

Material thickness: 0.7-1.3mm
Roller stations: about 25 stations
Roller material: 45# steel
Main motor power: 30kw
Forming speed: 0-15m/min
Hydraulic cutting power: 3kw
Power supply: 380v, 50hz, 3phase (or as per requirement)

Precision Engineering for Robust Deck Flooring

With 18-24 forming stations and high-grade chromium steel rollers, this machine guarantees durability and consistent profile accuracy. Suitable for galvanized and colored steel sheets, it delivers strong deck panels demanded by modern construction projects. The chain drive and hydraulic cutting systems ensure seamless operation, while low noise ( 85 dB) maintains a comfortable work environment.

User-Friendly Automation and Efficiency

Equipped with a computerized PLC control system, the Deck Floor Roll Forming Machine streamlines operations, reduces manual labor, and increases production consistency. Automatic feeding and rolling processes work in tandem with hydraulic cutting, enabling a rolling speed of 8-15 m/min. This efficiency supports diverse project timelines while guaranteeing top-quality output.

FAQs of Deck Floor Roll Forming Machine:

Q: How does the Deck Floor Roll Forming Machine operate?

A: The machine operates by automatically feeding galvanized or colored steel sheets (10001250 mm wide, 0.81.2 mm thick) through a series of 1824 forming stations with chromium steel rollers. The PLC control system manages the rolling and cutting process, ensuring uniform deck flooring profiles at speeds of 815 meters per minute.

Q: What materials are compatible with this machine?

A: This equipment processes high-grade galvanized steel and colored steel sheets within a width range of 10001250 mm and thickness of 0.81.2 mm, making it ideal for various construction applications requiring strong, corrosion-resistant decking panels.

Q: When should this machine be considered for use in a project?

A: The machine is ideal for use in new construction, industrial roofing, and flooring projects where large quantities of uniform decking panels are required, especially when efficiency, precision, and CE/ISO certified quality are priorities.

Q: Where can the Deck Floor Roll Forming Machine be installed?

A: It is designed for installation in industrial manufacturing facilities, metalworking workshops, or construction material plants. Its robust build and manageable size (9500*1500*1400 mm) allow for integration into both new and existing production lines.

Q: What is the process for maintenance and support?

A: Regular maintenance includes checking the rollers, chain drive, and hydraulic systems. The manufacturer offers after-sales service, with engineers available to service the machinery overseas, ensuring minimal downtime and sustained performance.

Q: How does automation benefit my operation?

A: Automation through the PLC control system reduces the need for manual intervention, allows for precise adjustments, and boosts overall productivity. This ensures consistent product quality, faster turnarounds, and the ability to handle large volume orders efficiently.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Roof and Wall Panel Roll Forming Machine' category

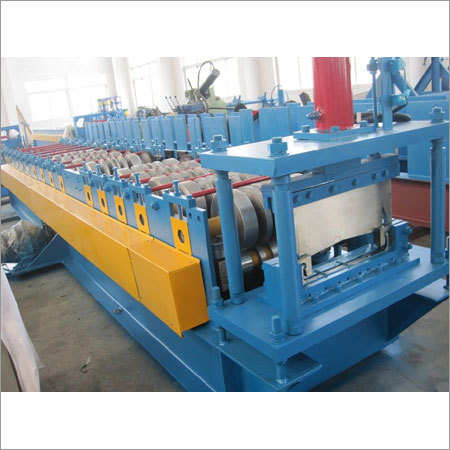

Standing Seam Roll Forming Machine Price Range : 20000.00 - 100000.00 USD ($)/Set Minimum Order Quantity : 1 Control System : PLC Control Color : Blue & Yellow Capacity : 1015 meters/min Type : Standing Seam Roll Forming Machine Weight : approx. 4000 kg Cutting System : Hydraulic Cutting Automatic Grade : Automatic Rolling Speed : 15 m/min (max) Cutting Thickness : 0.30.8 mm Material : High Grade Steel Computerized : Yes Dimension (L*W*H) : 6500 mm x 1200 mm x 1400 mm Voltage : 380 V/50 Hz/3 Phase
